Submit manuscript...
Journal of
eISSN: 2469 - 2786

Bacteriology & Mycology: Open Access

Short Communication Volume 11 Issue 2

Rapid and sensitive real-time PCR-DNA based method to detect Arachis hypogea allergens in various food samples

Vishal Kondal,1 Karn Pratap Singh,2 Kirti Rani1

1Amity Institute of Biotechnology, Amity University, India
2Sr Scientist, DSS Imagetech Pvt Ltd, India

Correspondence: Dr Kirti Rani, Assistant Professor (III), Amity Institute of Biotechnology, Amity University Uttar Pradesh, Noida, Sec-125, Gautam Buddha Nagar, Noida- 201313 (UP), India

Received: May 08, 2023 | Published: May 17, 2023

Citation: Kondal V, Singh KP, Rani K. Rapid and sensitive real-time PCR-DNA based method to detect Arachis hypogea allergens in various food samples. J Bacteriol Mycol Open Access. 2023;11(2):82-85. DOI: 10.15406/jbmoa.2023.11.00349

Download PDF

Abstract

Peanut allergy is life threatening health concern that caused by allergenic proteins termed as Arachis hypogea that present in peanut. The most fatal allergic reaction to peanuts is anaphylaxis that is harmful to the individuals who are allergic to peanut allergens. Sometimes, traces of peanut allergens contamination are also occurred during food processing. Hence, it is very much important to detect peanut allergen in food products and our proposed study was carried out to detect peanut allergens (Arachis hypogea allergen) in various processed and unprocessed foods using real-time Polymerase Chain reaction (real-time PCR) technique as a rapid and sensitive method. First, DNA was extracted from the food samples using commercially available DNA extraction kit and further quantity & quality of the extracted DNA were tested. The extracted DNA was further observed for amplification to test the presence of peanut allergens in chosen food samples to detect Arachis hypogea allergen (peanut allergen) positive food samples. The sensitivity and specificity of proposed method was assayed for its limit of detection which was found to be 0.01% and obtained efficiency was 101.2%. Spiking of peanut powder in maize flour was performed at different concentrations.

Keywords: peanut allergen, Delhi-India, DNA isolation, real time-PCR, Arachis hypogea, qPCR

Abbreviations

PCR, polymerase chain reaction; qPCR, quantitative polymerase chain reaction; LOD, limit of detection; ELISA, enzyme-linked immunosorbent assay; LAMP, loop mediated isothermal amplification; RPA, recombinase polymerase amplification

Introduction

Peanut (Arachis hypogea) is a leguminous crop and known as the groundnut. It is consumed worldwide for its edible seeds and oil having best nutritional qualities. Peanut allergy is a serious public health issue to those populations who are allergic to peanut allergenic proteins. The major other food allergens are also reports in various preparations of milk, egg, fish, crustacean shellfish (e.g. crab, lobster, and shrimp), tree nuts (e.g. almonds, walnuts, and pecans), wheat, and soybean including peanut which account for total 90% allergenic food reactions.1–3 Among them, peanut allergy is found to considered more fatal because of its prevalence, persistence and potential for a severe allergic reaction that include anaphylaxis symptoms like itchiness, sneezing, vomiting, diarrhoea, hives, drop in blood pressure, asthma attack and even cardiac arrest. Anaphylaxis is a life-threatening due to peanut allergen caused allergic reaction that results type-I hypersensitivity reaction of the immune system in affected individuals. At present, eighteen peanut allergens have been confirmed ranging from Ara h 1 to Ara h 18. Identified major peanut allergens are Ara h 1 and Ara h 3 that belongs to the cupin superfamily of proteins, and Ara h 2 and Ara h 6 which belongs to prolamin superfamily.4–7 Hence, various analytical methods have been proposed to detect peanut allergens in food samples like Enzyme-linked Immunosorbent assay (ELISA), Mass spectrometry and protein based method which are reports efficient, precise and sensitive method although heat treatment made during food processing may have a significant impact on the conformation and quality of the proteins that usually interfere in detection of peanut allergens along with other food allergens.8–12 So, therefore, DNA-based methods have been considered as most rapid, highly sensitive and allergen specific approaches for identifying allergens in food products as compared to protein-based methods or other reported methods. Hence, we proposed DNA based method to detect peanut allergens in different foods by using real-time PCR as a rapid and sensitive method.

Material and methods

Sample collection

We were procured the different 17 food samples like cookies, protein cookie, chocolate, fruit cakes, cake icing, potato chips, schezwan sauce, aloo bhujia, badam pak and kaju katli randomly from the local market of Sarita Vihar, New Delhi, India and Bhajanpura, North-east Delhi, India.

DNA extraction

The DNA was extracted from the various chosen 17 food samples using the commercially available DNA extraction kit (DSS-DNEUS-011, DSS Imagetech Pvt Ltd., India). 200 mg of food sample was weighed and prepare food sample test solution in 1.5 ml tube by adding 500 µL of lysis buffer and vortexed for 2-3 min, and 15 µL proteinase-K was added in all vortexed test samples and incubated at 65°C for 30 min. After incubation, test food samples were centrifuged at 10,000 rpm for 10 min. After centrifugation, the supernatant was collected in another tube and 300 µL of DNA binding buffer was added followed by mixing. Then, the mixtures were passed through spin column and column was washed with washing buffer 1 and washing buffer 2 respectively. Finally, DNA was eluted in 50 µL of elution buffer for much chosen samples. The quality and quantity of the isolated DNA were checked by Nanodrop (Thermo Scientific) at 260/280 nm. The obtained DNA was stored at -20°C until further their use.

Real-time PCR setup

Peanut allergens were identified in various test food samples by using commercially available kit (DSS-PN-011, DSS Imagetech Pvt Ltd., India). The kit is based on quantitative real-time PCR (qPCR) SYBR protocol. The quantification was carried out by using 16 well Open qPCR real time systems (ChaiBio, USA). For this, DNA from all the chosen test food samples was diluted to make 50 ng/µL and qPCR reaction were performed in 20 µL reactions consisting of 10 µL of SYBR green Dye, 5 µL of DNA and 0.6 µL of primer mix (forward and reverse). The final volume was made up by nuclease free water and all reactions were run in triplicate, and three biological replicates. A positive test control and negative test control reaction provided in kit were set in each batch of amplification in each set of experiment. The thermal condition was used following initial denaturation at 95ºC for 1 min, 40 cycles (denaturation at 95 ºC for 15s, annealing at 60ºC for 1 min). Melting curve analysis was performed at 60ºC up to 95ºC with a 0.5ºC/s transition rate. The specificity and integrity of PCR products was ensured through the melt curve analysis.

Sensitivity analysis

The sensitivity test or limit of detection (LOD) of the assay was also performed using real-time PCR for the detection of peanut allergens in various chosen food samples. For this the DNA (50 ng/µL) was diluted in different dilutions: 100%, 10%, 1%, 0.1%, 0.01%. The DNA was serially diluted. The total volume was 50 µL. The qPCR reaction was performed as per above dilutions using the same reaction setup and thermal profile. Spiking of peanut powder was performed in maize flour. We generated mixtures with final weight of 200 mg that ranged from 1, 5, 10, 20, 30, 40, 50 mg of peanut powder in maize flour.

Specificity analysis

The specificity of proposed qPCR-DNA based assay was analyzed by amplification of the DNA isolated from a variety of non-peanut raw foods includes cashew, hazelnut, almond, sesame, pistachio, mustard, soya, milk, maize and wheat.

Experimental design of proposed DNA based method

Results

DNA extraction results

Extracted DNA in all chosen 17 food samples for detecting peanut allergens were tested for their quantity and quality by using Nanodrop (Thermo Scientific) at 260/280 nm to determine good yield and highly purified DNA.

Amplification of identified peanut allergen

We have amplified the positive control provided in the peanut allergen detection kit (DSS-PN-011, DSS Imagetech Pvt Ltd., India). DNA extracted from raw peanut was also amplified to validate the kit and the amplification peak was shown in Figure 1 and the respective melt curve shown in Figure 2. Out of the 17 food samples only 6 food samples (Cookie I, Protein cookie, Potato chips I, Aloo bhujia, Schezwan sauce and Badam pak) were tested for presence of peanut allergen (Table 1, Figure 3).

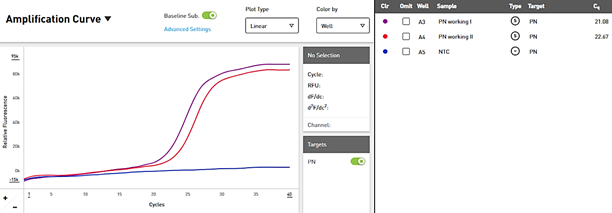

Figure 1 Amplification peaks for identified peanut allergens.

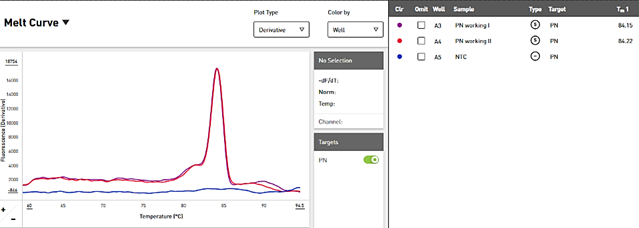

Figure 2 Melt curve for identified peanut allergens.

Figure 3 Amplification peaks of the identified peanut allergens in protein cookie food sample.

S.No

Food samples

qPCR results

1

Cookie I

Positive

2

Cookie II

Negative

3

Protein cookie

Positive

4

Cake icing I

Negative

5

Cake icing II

Negative

6

Chocolate I

Negative

7

Chocolate II

Negative

8

Chocolate III

Negative

9

Potato chips I

Positive

10

Potato chips II

Negative

11

Potato chips III

Negative

12

Aloo bhujia

Positive

13

Schezwan sauce

Positive

14

Fruit cake I

Negative

15

Fruit cake II

Negative

16

Badam pak

Positive

17

Kaju katli

Negative

Table 1 Observations of chosen food samples that analyzed for the presence of peanut allergens

Sensitivity analysis

Sensitivity analysis was performed to determine the limit of detection by using 50ng/µL DNA that was serially diluted up to 0.01%. Observed amplification peaks were shown in Figure 4, melt curve was shown in Figure 5 and the standard curves were shown in Figure 6. The details of the qPCR cycle threshold values (Ct values) and melting temperature were shown in Table 2. Furthermore, we have also checked the sensitivity of the assay by spiking the maize flour with peanut powder and it was obtained in the spiked sample from 10 mg as positive controls.

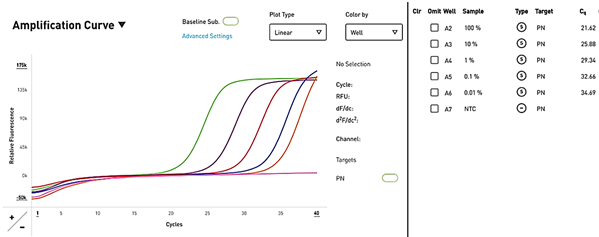

Figure 4 Amplification peaks of the lower detection limit of real-time PCR-DNA method.

Figure 5 Melt curve of lower detection limit of real-time PCR-DNA method.

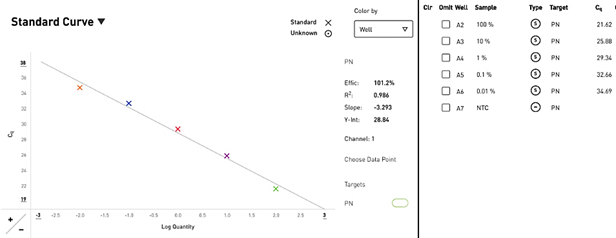

Figure 6 Standard curve of the lower detection limit of real-time PCR-DNA method.

Dilutions of the DNA

qPCR cycle threshold values (Ct values)

Tm value

100%

21.62

85.5

10%

25.88

85.43

1%

29.34

85.4

0.10%

32.66

85.56

0.01%

34.69

85.12

Table 2 Observed qPCR cycle threshold values (Ct values) and melting temperature (Tm) of lower detection limit of real-time PCR-DNA method

Specificity analysis

Identified amplification peaks in isolated DNA from the non-peanut food samples was found to 100% specific for peanut allergen that performed by kit as negative controls (Table 3).

S.No

Food samples

qPCR test results

1

Cashew

Negative

2

Hazelnut

Negative

3

Almond

Negative

4

Sesame

Negative

5

Pistachio

Negative

6

Mustard

Negative

7

Soya

Negative

8

Milk

Negative

9

Maize

Negative

10

Wheat

Negative

Table 3 qPCR results of non-peanut food samples tested for specificity of qPCR-DNA method

Discussion

Extracted DNA in all chosen 17 food samples for detecting peanut allergens were tested for their quantity and quality which was showed good yield and highly purified DNA. Amplification of extracted DNA from raw peanut as positive controls was done and got the positive results for observed amplification peak (Figure 1) and the respective melt curve (Figure 2). Out of the 17 food samples only 6 food samples (Cookie I, Protein cookie, Potato chips I, Aloo bhujia, Schezwan sauce and Badam pak) were found to be positive for peanut allergen (Table 1, Figure 3) whose results were comparable with previous findings.12,13

Sensitivity analysis was performed to detect the limit of detection by using 50ng/µL DNA and observed lower detection limit of the assay was 0.01% along with observation of amplification peaks (Figure 4), melt curve (Figure 5) & standard curve (Figure 6). Results of observed qPCR cycle threshold values (Ct values) and melting temperature values (Tm values) were found to similar with previous observations.13,14 Identified amplification peaks in isolated DNAs of non-peanut food samples was found to 100% specific for peanut allergens confirmed as negative controls (Table 3).15,16

Conclusion

Observed amplifications of extracted DNAs were done in all 17 chosen food samples to detect Arachis hypogea allergens (peanut allergens) positive food samples. Among them, 6 food samples were found peanut allergen positives (Cookie I, Protein cookie, Potato chips I, Aloo bhujia, Schezwan sauce and Badam pak). The sensitivity and specificity of proposed method was found to be 0.01% and obtained efficiency was 101.2%. Peanut (Arachis hypogaea) contains allergenic proteins and reported fatal to the sensitised population. Contamination of peanut allergens in food preparation can occur accidently while processing food or peanut traces mixed in foods to enhance the taste of food preparations. But it must be indicated well on food packet or container ingredient labelling or mentioned by food companies’ authorities to prevent accidental consumption by allergic populations. Hence, prevention of peanut caused allergic reaction is to be done by avoiding accidental exposure to peanut allergens by using rapid, convenient, and accurate assay DNA based methods to detect peanut allergens in processed food as compared to protein based other prevailed methods. Nucleic acid amplification methods could further play indispensable role in the future due to its potent lower detection limit and antigen specificity to detect very low concentration of peanut allergens in processed foods. The digital PCR DNA (nucleic acids) based method would get more attention for its rapid quantification ability and cost effective simple device including isothermal amplification such as DNA hybridization based method, LAMP (Loop mediated isothermal amplification) and RPA (recombinase polymerase amplification) would offer significant breakthrough for on-site detection of food allergy in processed food preparations or samples before selling or consuming commercial food products.

Acknowledgments

I would like also to express my cordially appreciation to Amity University Uttar Pradesh, Noida, India.

Conflicts of interest

The author declares there are no conflicts of interest.

References

  1. Sanchiz A, Sánchez-Enciso P, Cuadrado C, et al. Detection of peanut allergen by real-time PCR: looking for a suitable detection marker as affected by processing. Foods. 2021;10(6):1421.
  2. Husain Z, Schwartz RA. Peanut allergy: an increasingly common life threatening disorder. J Am Acad Dermatol. 2012;66(1):136–143.
  3. Sicherer SH, Sampson HA. Food allergy: a review and update on epidemiology, pathogenesis, diagnosis, prevention, and management. J Allergy Clin Immunol. 2018;141(1):41–58.
  4. Mueller GA, Maleki SJ, Pedersen LG. The molecular basis of peanut allergy. Curr Allergy Asthma Rep. 2014;14(5):429.
  5.  Zhang M, Wu P, Wu J, et al. Advanced DNA-based methods for the detection of peanut allergens in processed food. TrAC Trends Analytical Chem. 2019;114:278–292.
  6. Lieberman, JA, Gupta, R, Knibb RC, et al. The global burden of illness of peanut allergy: a comprehensive literature review. Allergy. 2021;76(5):1367–1384.
  7. Tramuta C, Decastelli L, Barcucci E, et al. Detection of peanut traces in food by an official food safety laboratory. Foods. 2022;11(5):643.
  8. Sanchiz A, Sánchez-Enciso P, Cuadrado C, et al. Detection of peanut allergen by real-time PCR: looking for a suitable detection marker as affected by processing. Foods. 2021;10(6):1421.
  9. Wen HW, Borejsza-Wysocki W, DeCory T, et al. Peanut allergy, peanut allergens, and methods for the detection of peanut contamination in food products. Comprehen Rev Food Sci Food Safety. 2007;6(2):47–58.
  10. Besler M. Determination of allergens in foods. Trac Trends Anal Chem. 2001;20:662–672.
  11. Chassaigne H, Nørgaard JV, Van Hengel AJ. Proteomics-based approach to detect and identify major allergens in processed peanuts by capillary LC-Q-TOF (MS/MS). J Agri Food Chem. 2007;55(11):4461–4473.
  12. Sharma GM, Khuda SE, Parker CH, et al. Detection of allergen markers in food: analytical methods. Food Drug Administ Papers. 2007;6:65–121.
  13. García A, Madrid R, García T, et al. Detection of food allergens by taqman real-time PCR methodology. Methods Mol Biol. 2017;1592:95–108.
  14. Pandey AK, Varshney RK, Sudini HK, et al. An improved enzyme-linked immunosorbent assay (ELISA) based protocol using seeds for detection of five major peanut allergens Ara h 1, Ara h 2, Ara h 3, Ara h 6, and Ara h 8. Front Nutr. 2019;6:68.
  15. Madrid R, García-García A, Cabrera P, et al. Survey of commercial food products for detection of walnut (Juglans regia) by two ELISA methods and real time PCR. Foods. 2021;10(2):440.
  16. Pinto AD, Forte VT, Guastadisegni MC, et al. Comparison of DNA extraction methods for food analysis. Food Control. 2007;18(1):76–80.
Creative Commons Attribution License

©2023 Kondal, et al. This is an open access article distributed under the terms of the, which permits unrestricted use, distribution, and build upon your work non-commercially.
